3D MEASURING

3D-measuring

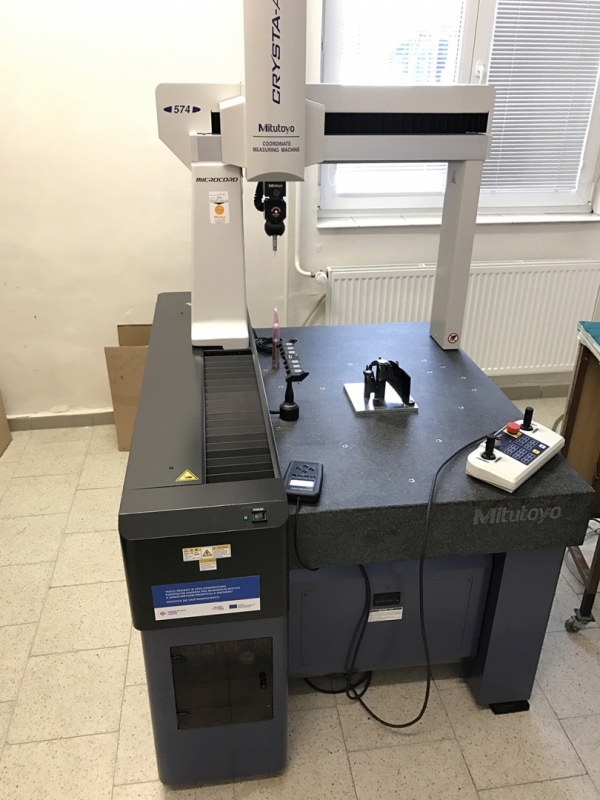

We perform customized 3D measuring of parts in the MitutoyoCrysta-Apex S574 coordinate machine according to the supplied drawings. The part can also be compared with the 3D CAD model of all the common data formats. The measuring output is a form of the report in the graphic, text or combined format as required by customer. We perform measuring for the components of the engineering, automotive and general industry, the plastic and rubber products.

1. COORDINATE MEASUREMENT

Complete measuring of the part, measuring the geometric parameters (distance, diameter, angle), comparison of the geometric parameters (straightness, flatness, circularity, alignment, concentricity, parallelism, perpendicularity, chamfer, symmetry, rusty mottle), evaluation of tolerances. Measuring is done in the highly precise CNC mode.

2. MEASURING BY COMPARISON WITH THE MODEL

Measuring of the components of common shapes that do not contain any geometric shapes as, for example, moulded pieces, castings. Measuring of the components that contain the geometric shapes, for example, moulded pieces, machined parts. Measuring by comparison with the model is highly accurate measuring of shapes that cannot be measured in any other manner. The measuring is based on the 3D mathematical CAD model. The measured point of a component is assessed against the ideal point on the model and the instrument evaluates the error.
